P Wireline Core Rods

P Wireline Core Rods

Designed to be used under 600 (800) m

Rod outer diameter

114.3 mm

Rod inner diameter

101.6 mm

Standard rod length

1.5 m / 3.0 m

Standard rod weight

17.3 kg/m

1.5m rod total weight

26 kg

3.0m rod total weight

52 kg

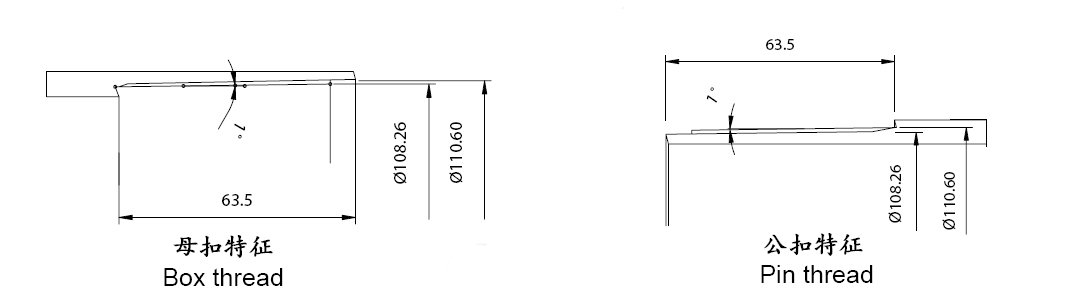

Thread features

Thread parameters

Thread length

63.5 mm

Thread pitch

2.5 thread/inch

Thread tooth height – box thread

1.17 mm

Thread tooth height – pin thread

1.27 mm

Thread tooth angle

29°

Tensile resistance

565 ~ 660 KN

Rod parameters

Tempering

HRC 30

Thread tensile strength

900 ~ 950 Mpa

Thread yield strength

800 ~ 850 Mpa

Thread torsional strength

MAX 11.5 ~ 12.63 KN·m

Recommended bore depth

600 ~ 800 m
