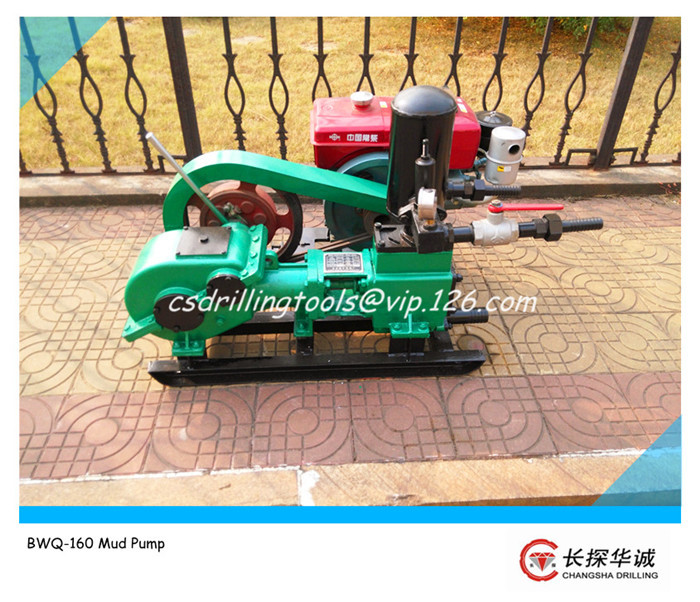

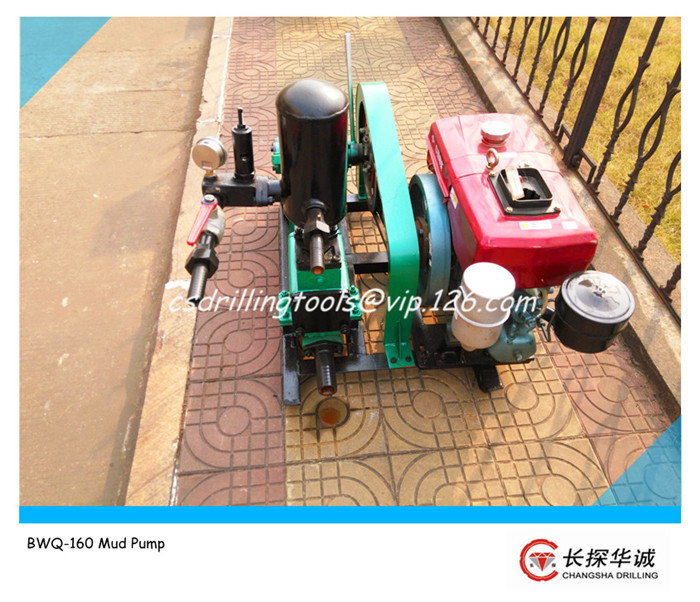

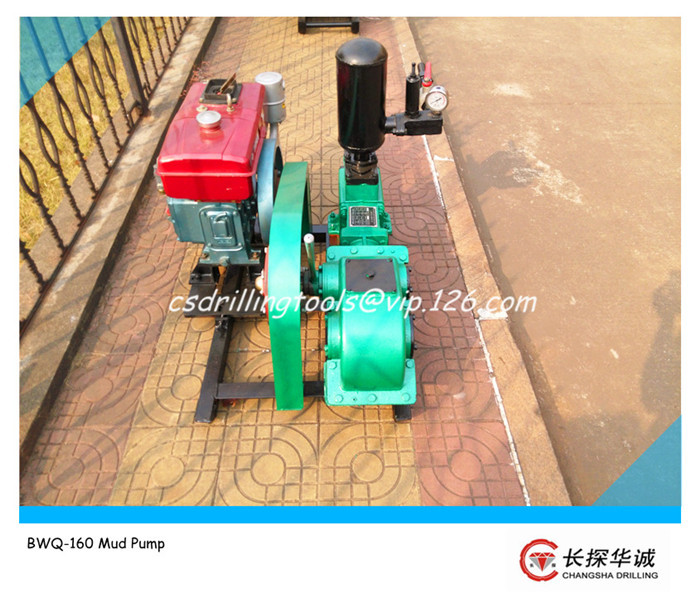

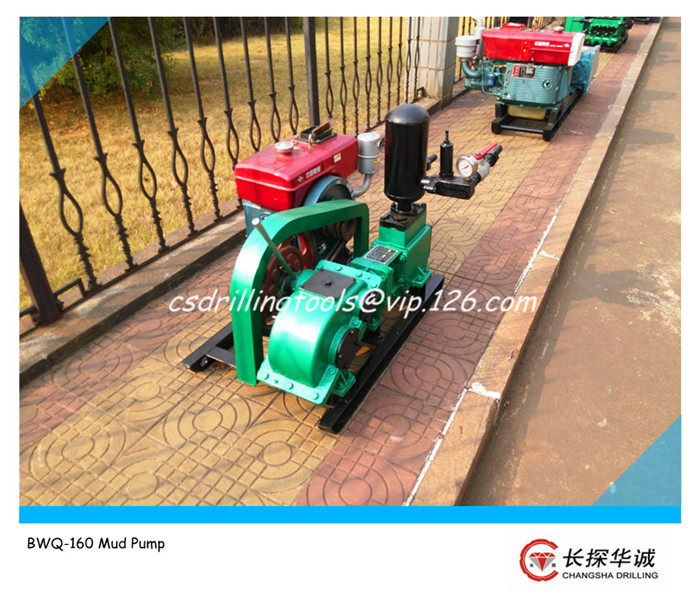

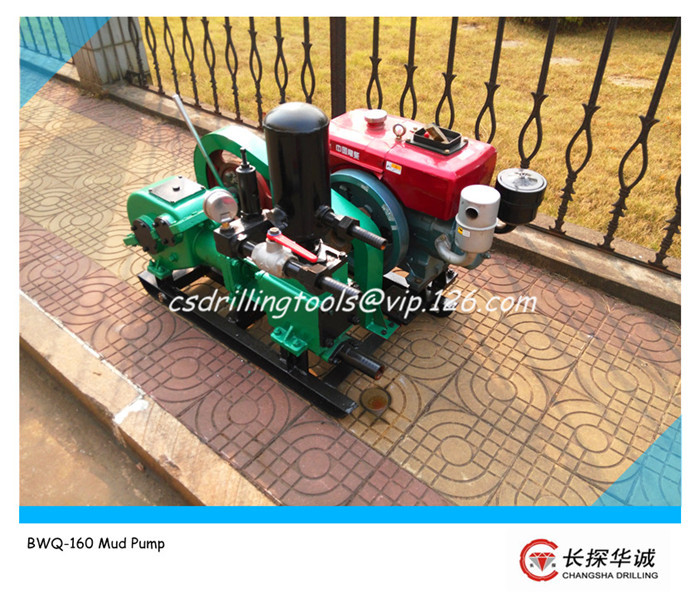

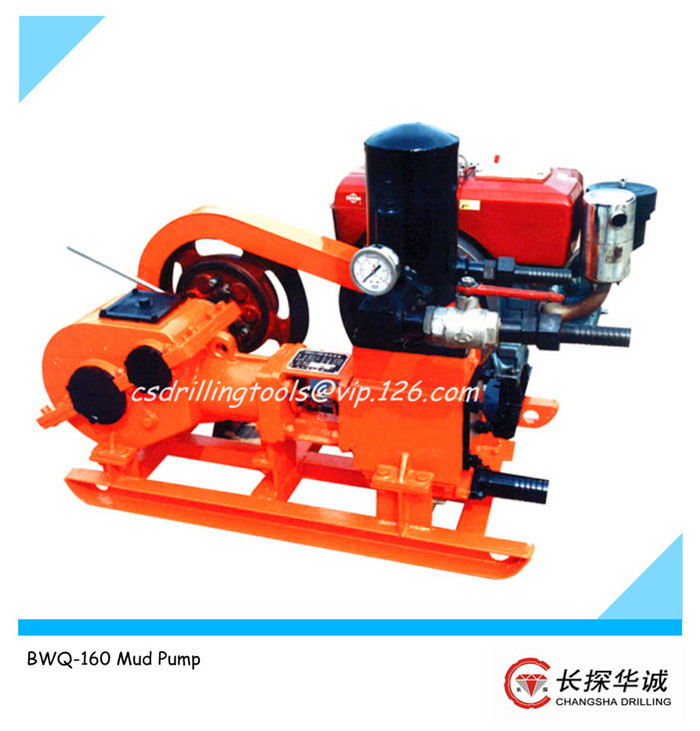

BWQ-160 Mud Pump

BWQ-160 Mud Pump

BWQ-160 mud pump is a horizontal, single-cylinder double-acting, reciprocal piston pump. This pump uses the crankshaft and connecting. The main driven systrm that well-oiled and in high durability is in closed position. The suction valve and the drainage valves are ball check valve. The valves’open and close are reliable and durability. The pump has the advantages of high-duty, moderate pressure, simple structure, easy to maintain, small and light, and so on. It is mainly used for supplying the washing liquid in the drilling of engineering geology. The liquid that the sand-content is less than 5% or non-corrosive effect to the metal and the rubber parts can be supplied by the pump.



 Technical Figures

Type

Horizontal single-cylinder double-acting reciprocal piston pump

Cylinder diameter

95 mm

Stroke

90 mm

Reciprocate time

146 times/min

Displacement

160 liter/min

Pressure

1.5 MPa

Suction pipe diameter

45 mm

Discharge pipe diameter

25 mm

Power

Type

R180 (Diesel engine), Y132S1-2 (Electric motor)

Rated power

5.7 KW (Diesel engine), 5.5KW (Electric motor)

Rated speed

2400 r/min (Diesel engine), 2900 r/min (Electric motor)

Weight with engine

Approx 140 kg

Dimension (Length * width * height)

1000 * 800 *800 mm
