QZ-2B Drilling Rig

QZ-2B Drilling Rig

QZ-2B Drilling Rig

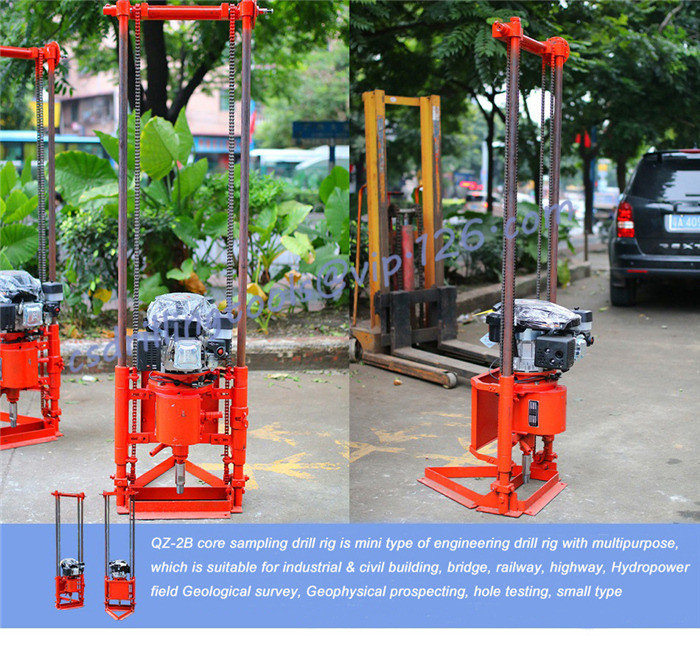

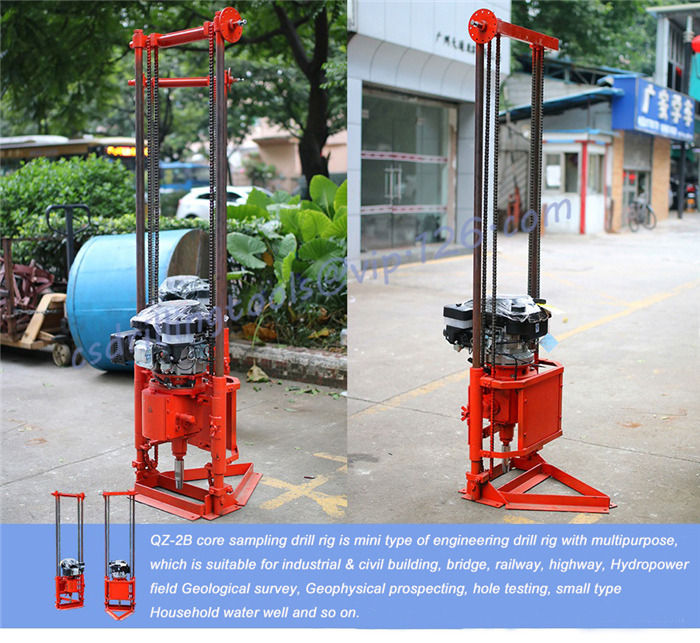

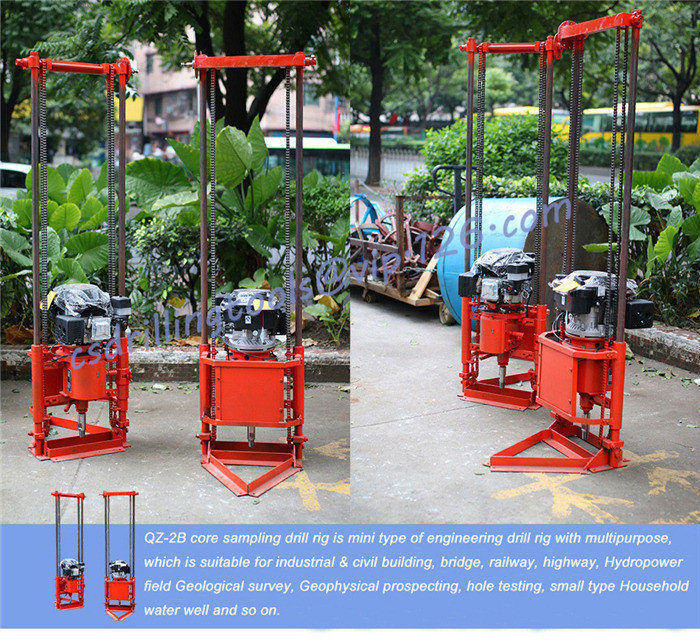

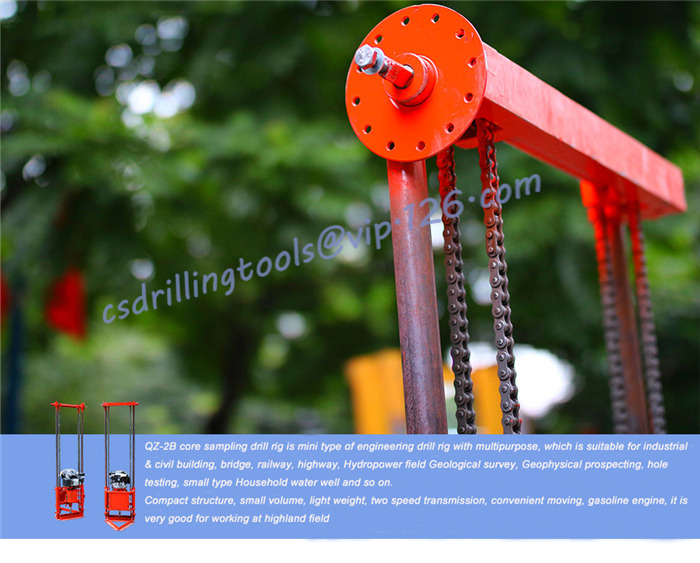

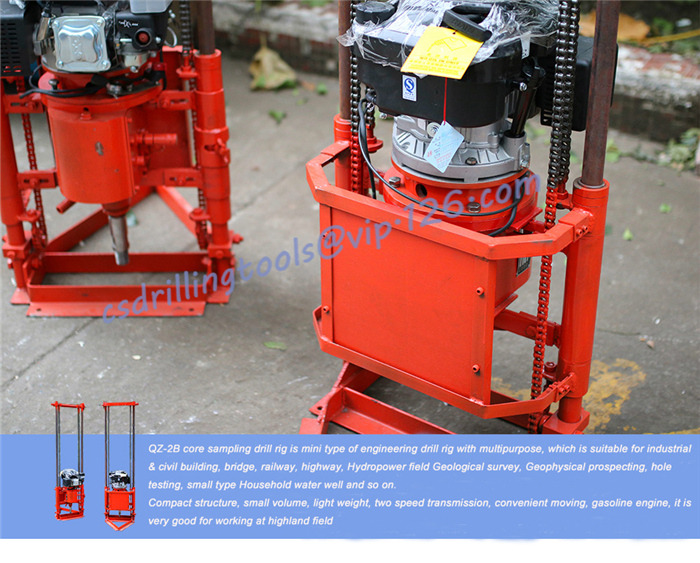

QZ-2B core sampling drill rig is mini type of engineering drill rig with multipurpose, which is suitable for industrial & civil building, bridge, railway, highway, Hydropower field Geological survey, Geophysical prospecting, hole testing, small type Household water well and so on.

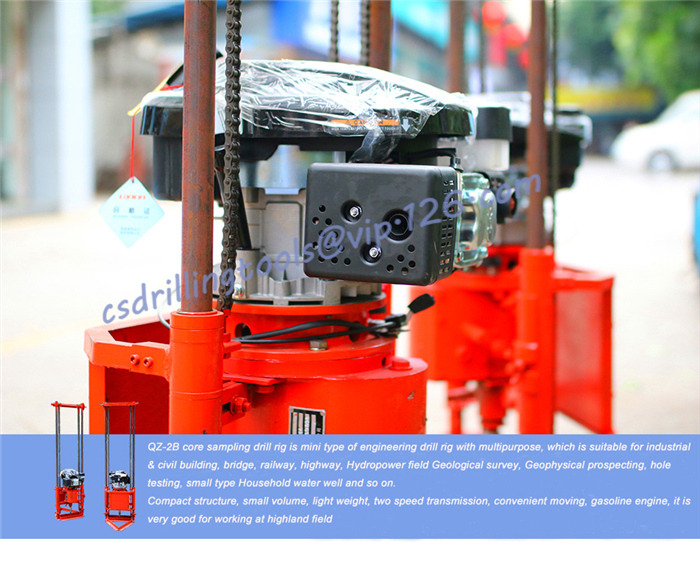

Compact structure, small volume, light weight, two speed transmission, convenient moving, gasoline engine, it is very good for working at highland field

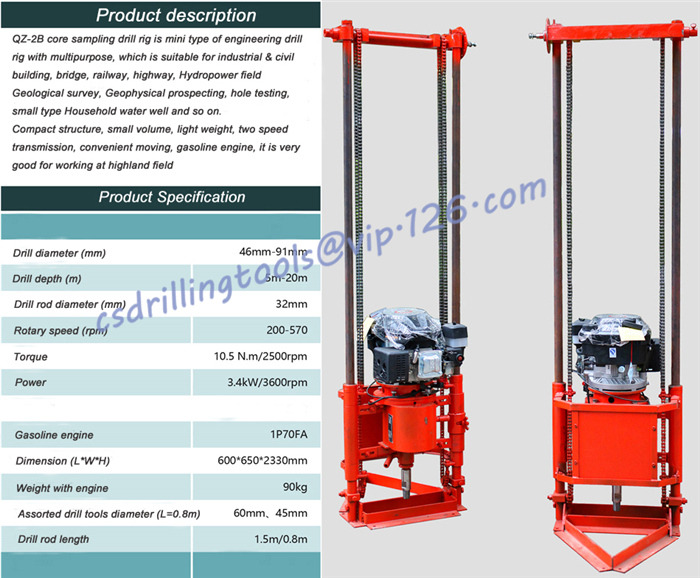

Drilling diameter

46mm~91mm

Drilling depth

5m~20m

Drilling rod diameter

32mm

Rotary speed

200~570

Torque

10.5N.m/2500rpm

Power

3.4KW/3600rpm

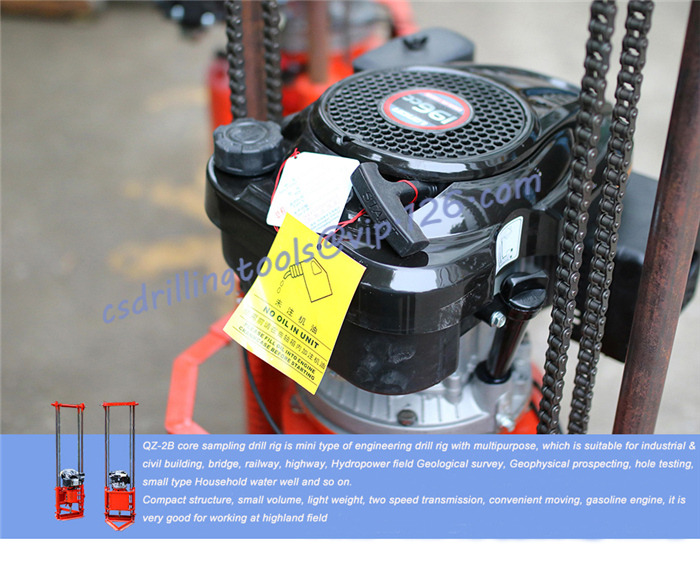

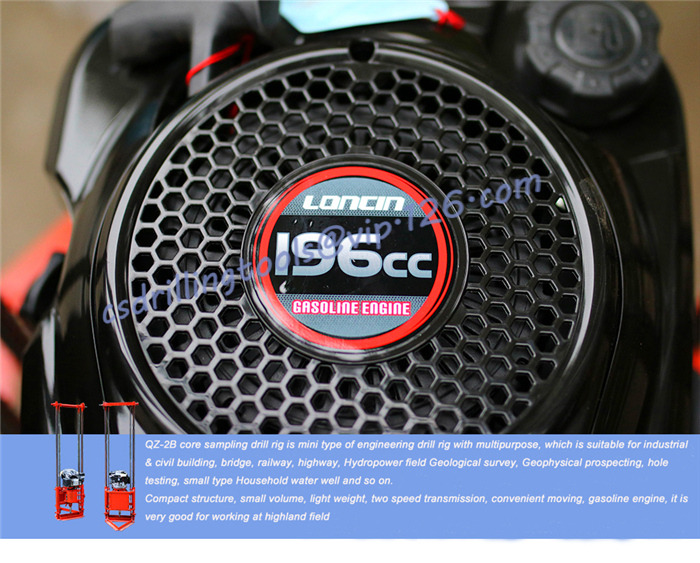

Engine

Gasoline engine

Dimension

600*650*2330mm

Weight with engine

90kg

Drill rod length

1.5m/0.8m

Assorted drill tools diameter (length 0.8m)

60mm, 45mm



Assorted list

#

Specification

QTY

Remark

1

QZ-2B Drill rig

1

With gasoline engine

2

Φ32 * 1500mm drill rod

6



3

Φ32 * 800mm drill rod

8



4

Φ40 drill rod adaptor

14



5

Φ45 alloy drill bit

1



6

Φ45 core barrel (0.8m)

1



7

Φ45 core barrel head

1



8

Φ60 alloy bit

1



9

Φ60 core barrel (0.8m)

1



10

Φ60 core barrel head

1



11

Fork

1



12

Y type 30*50*10 water seal

4



13

Φ30*50*10 grease seal

2



14

Φ17*30*10 small grease seal

2



15

Driving wheel

1
