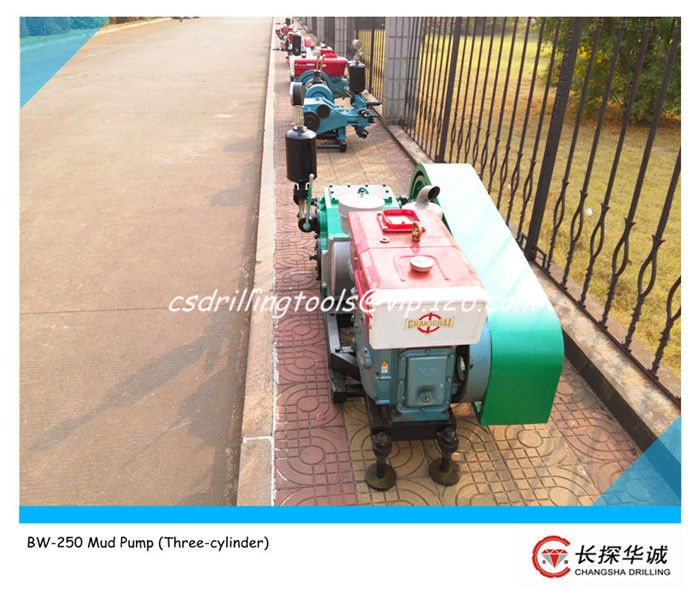

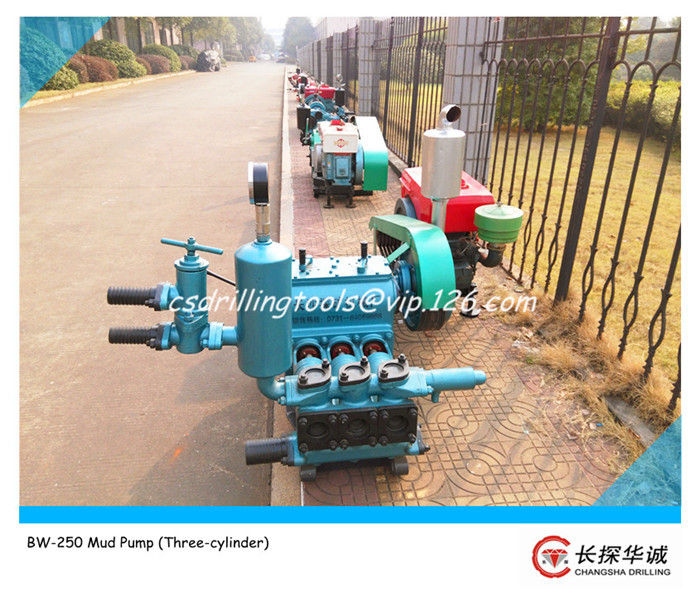

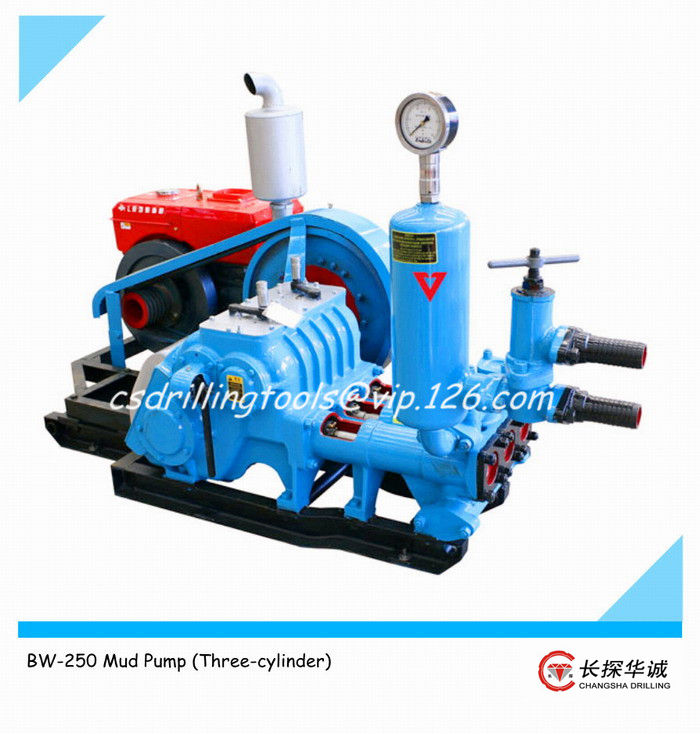

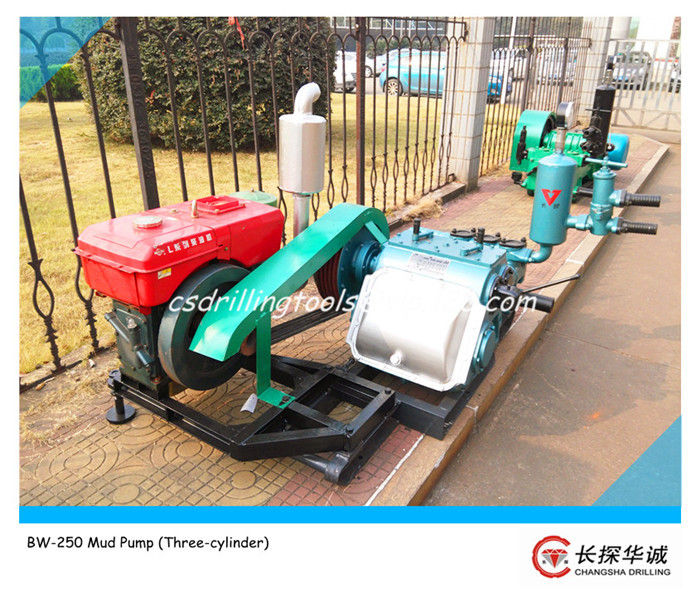

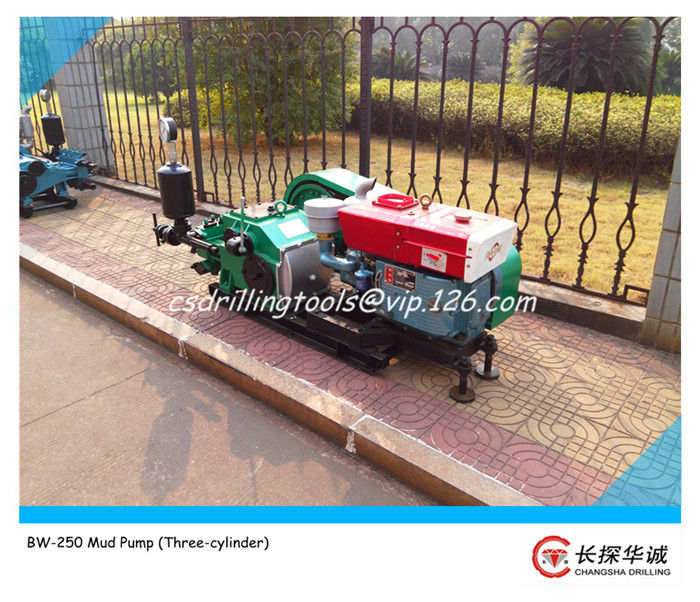

BW-250 Mud Pump (Three-cylinder)

BW-250 Mud Pump (Three-cylinder)

BW-250 Mud pump is a horizontal, triplex, single acting reciprocating piston pump, it has the advantages of multi-speed shift gears for variable displacement, compact construction, light weight, readily movable and easy to be operated etc.
BW-250 Mud pump is provided with two kinds of liner



Technical Figures

Type

Horizontal triplex reciprocating acting piston pump

Stroke

100 mm

Cylinder diameter

80, 65 mm

Handle position

1

2

3

4

1

2

3

4

Pump speed (s/min)

200

116

74

42

200

116

72

42

Output volume (liter/min)

250

145

90

52

166

96

60

35

Discharge pressure (MPa)

2.5

4.5

6.0

6.0

4.0

6.0

7.0

7.0

Volumetric efficiency

85%

Total efficiency

72%

Input power

15KW

Input speed of pump

500 r/min

Max. suction height

2.5 m

Suction pipe diameter

76 mm

Discharge pipe diameter

51 mm

Weight

500kg

Dimensions (Length * width * height)

1100 * 995 * 650 mm
