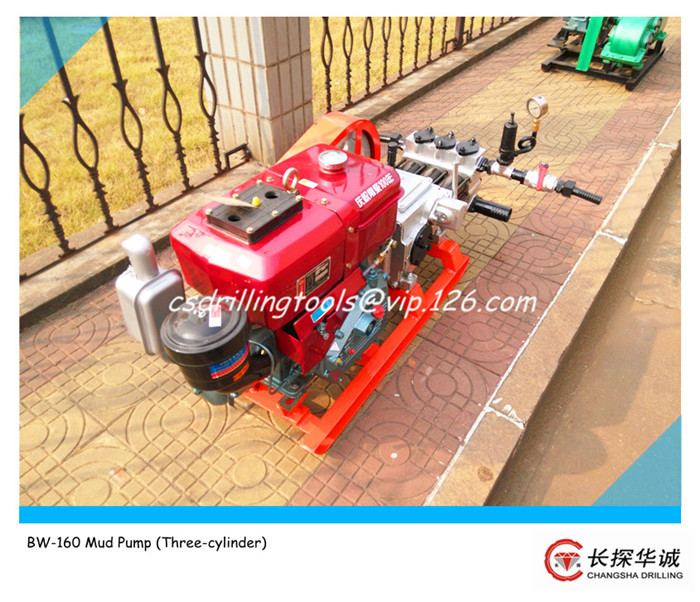

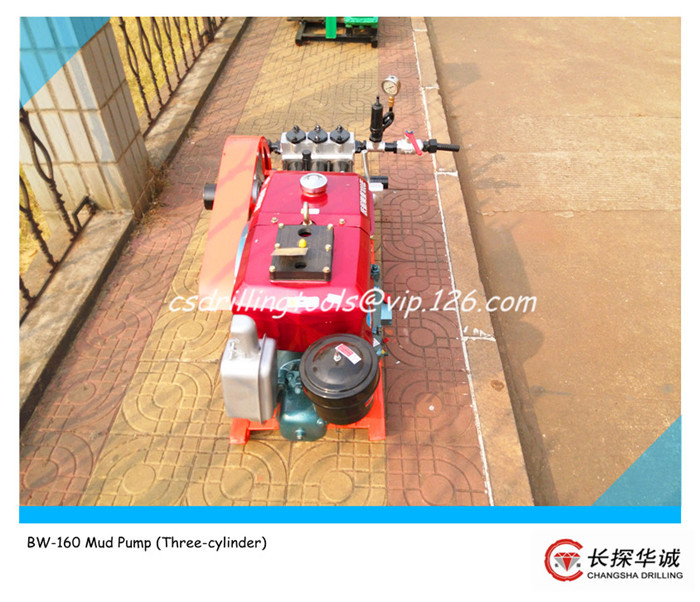

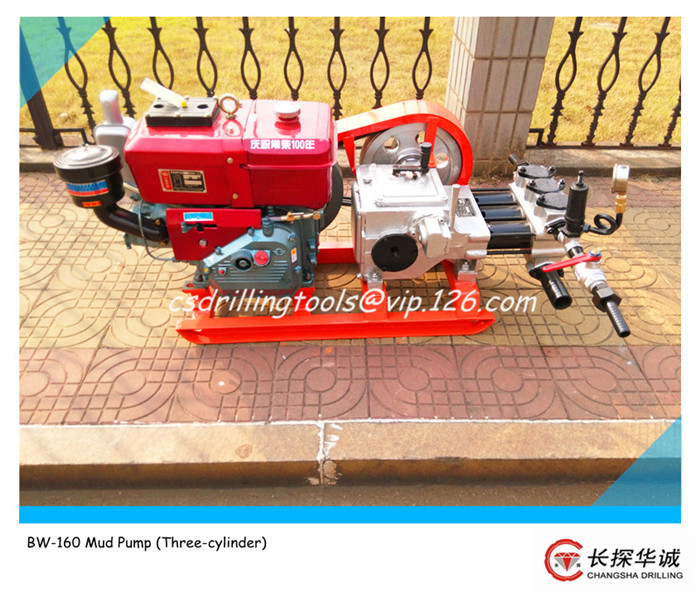

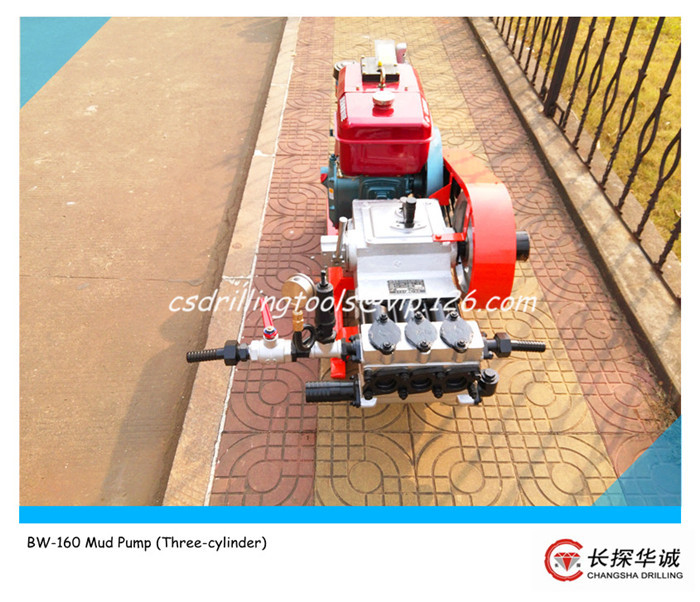

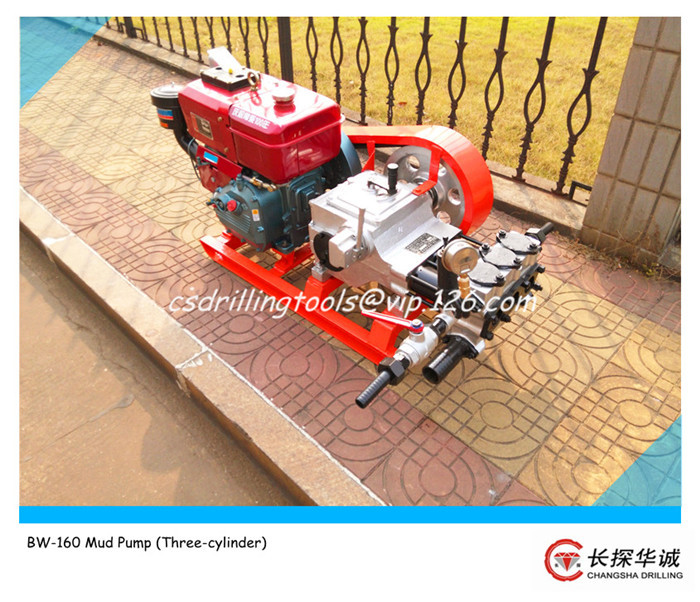

BW-160 Mud Pump (Three-cylinder)

The BW-160 mud pump is a horizontal, three-cylinder single-acting, reciprocal piston pump, It is mainly used to supply flushing fluid to the drilling well in engineering drill’s bedrock drilling or exploratory drilling . Its shell is A-alloy, so it is lightweight. The pump has two speeds and is easily operation.

Technical Figures

Type

Horizontal triplex reciprocating acting piston pump

Cylinder diameter

65 mm

Stroke

70 mm

Reciprocate time

245, 190 times/min

Displacement

160, 120 liter/min

Pressure

1.5, 2 MPa

Suction pipe diameter

51 mm

Discharge pipe diameter

25 mm

Power

Type

R185A (Diesel engine), Y132S-4-B3 (Electric motor)

Rated power

5.88KW (Diesel engine), 5.5KW (Electric motor)

Rated speed

2200 r/min (Diesel engine), 1440 r/min (Electric motor)

Weight with engine

Approx 200kg

Dimension (length * width * height)

1200 * 550 * 580 mm
