HT-150E Surface Coring Rig

HT-150E Surface Coring Rig

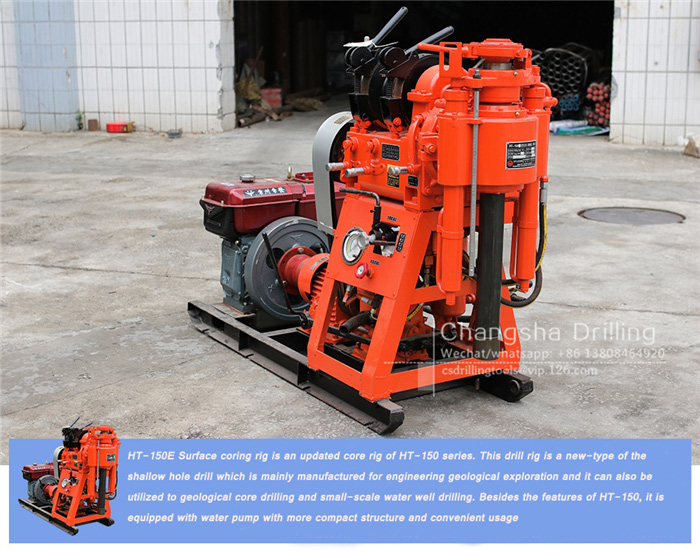

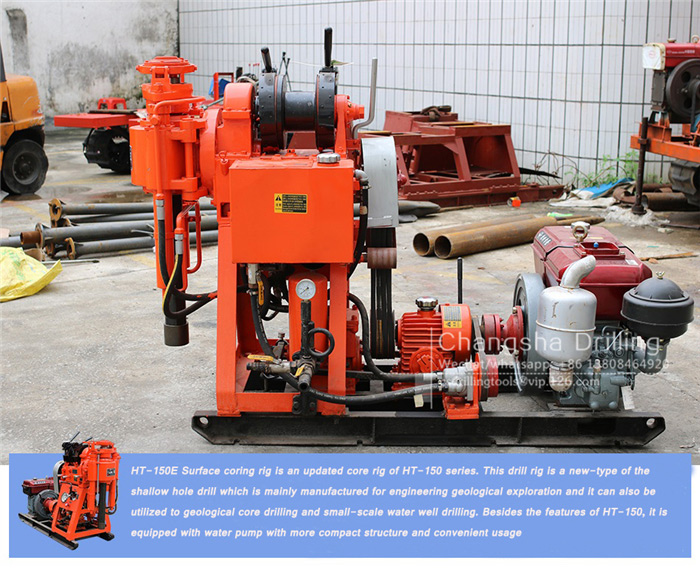

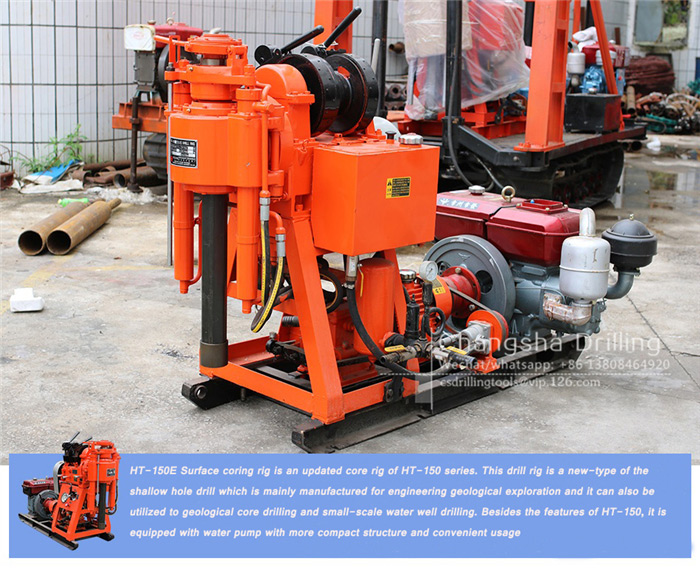

HT-150E Surface coring rig is an updated core rig of HT-150 series. This drill rig is a new-type of the shallow hole drill which is mainly manufactured for engineering geological exploration and it can also be utilized to geological core drilling and small-scale water well drilling. Besides the features of HT-150, it is equipped with water pump with more compact structure and convenient usage

Specification

Drilling depth (m)

42mm drill rod

150

50mm drill rod

110

Max. drilling aperture (mm)

42mm drill rod

130

50mm drill rod

150

Rotational speed of Gyrator (r/min)

99; 222; 456; 707; 1019

Max. output torque of spindle (Nm)

750

Through-hole diameter of spindle (mm)

57

Stroke of spindle (mm)

450

Max. hoist force of spindle (KN)

30

Max. feeding press of spindle (KN)

23

Max. hoist force of single rope winch (KN)

11

Hoist speed of single rope winch (m/s)

0.14; 0.92; 1.9; 2.94; 4.24

Displacement of pump (L/min)

100

Continuous working pressure of pump (Mpa)

0.7

Dimension (L*W*H) (mm)

1720*920*1380

Weight without engine (kgs)

530
