  • BW-150 Mud Pump (Three-cylinder)
BW-150 Mud Pump (Three-cylinder)

BW-150 Mud Pump (Three-cylinder)

BW-150 Mud Pump (Three-cylinder)

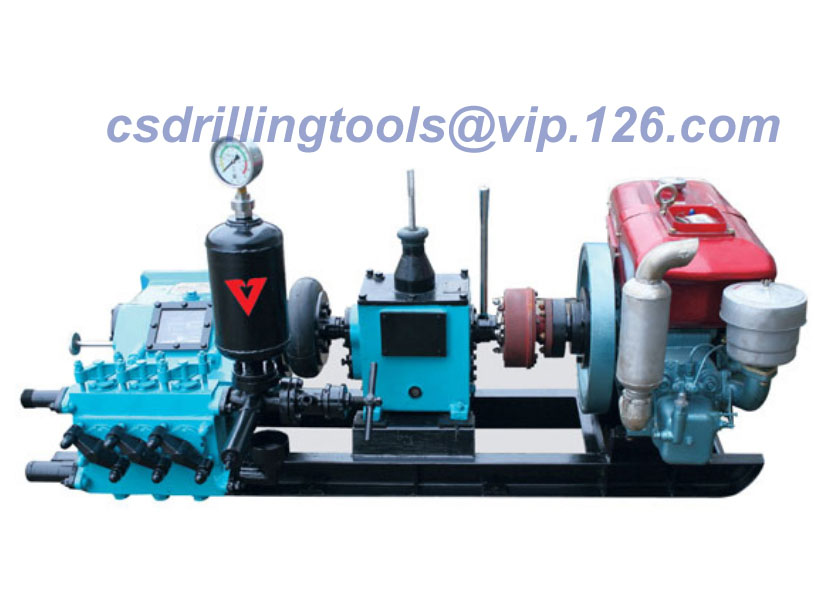

BW-150 is a horizontal triplex reciprocating piston mud pump, mainly used for supplying flushing fluid for drilling during geological drilling. It is suitable for less than 1500 meters diamond drilling in small diameter, also can be used for medium-low pressure concrete grouting. Its engine and gearing box is coupled by an external dry friction engine or electricity motor as per client requirement. 8 different pressure and flow can be adjusted for a wide range of applications. It has stable flow and small fluctuation to pressure



Technical Figures (for reference)

Type

Horizontal Triplex Reciprocating Acting Piston Pump

Stroke

70 mm

Cylinder diameter

70 mm

Handle position

1

2

3

4

1

2

3

4

Pump speed (s/m)

222

130

86

57

783

107

71

47

Output volume (l/m)

150

90

58

38

125

72

47

32

Discharge pressure (MPa)

1.8

3.2

4.8

7.0

2.3

4.0

6.0

7.0

Input power

7.5 KW

Input speed

1500 r/min

Max. suction head

2.5 m

Suction pipe diameter

51 mm

Discharge pipe diameter

25 mm

Weight

516 kg (with electric motor Y132M-4-B3)

630 kg (with diesel engine ZS1105)

Dimensions (length * width * Height)

1925 * 795 * 1150 (with electric motor Y132M-4-B3)

1840 * 795 * 995 (with diesel engine ZS1105)
