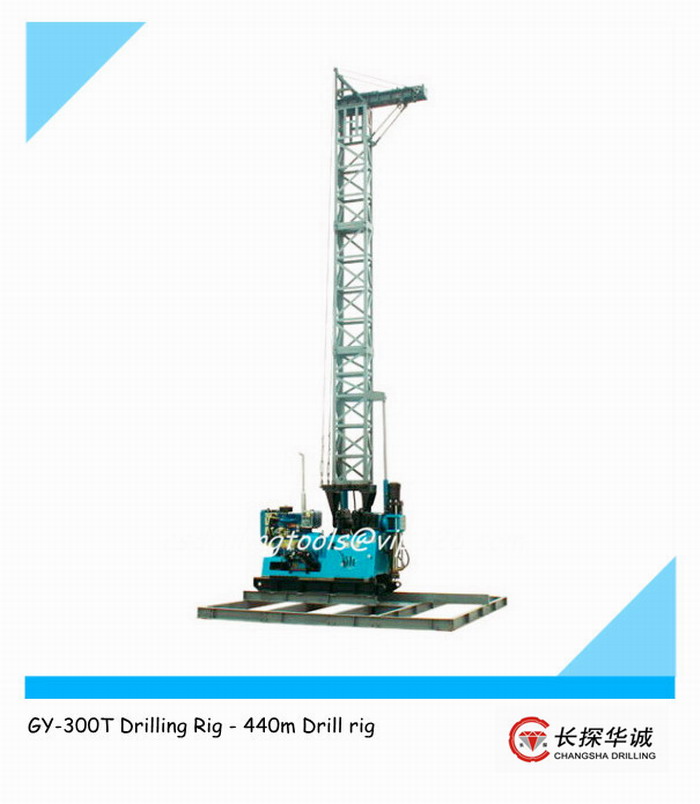

GY-300T Drilling Rig

GY-300T Drilling Rig

Specifications
GY-300T is equipped with hydraulic lifting and lowering drill tower, large torque, long feeding travel, hydraulic feeding&clamp.


Features:
1. Rotary and Percussive Drill Ability;
2. Flexible Drilling Angles.
3. Hydraulic Lifting and Lowering Drilling Tower
4. Multiple Gear Speed, large torque for carrrying out various tasks.
5. Two Reverse Gear Shift, easy to cope with accident.
6. Spindle stroke 600mm, improves drilling efficiency, reducing the possibilities of stalling and damage to drilling tools..

Drilling Capability



Wire Core Drill Rods BQ drilling depth

440m

Wire Core Drill Rods NQ drilling depth

290m

Wire Core Drill Rods HQ drilling depth

195m

Wire Core Drill Rods PQ drilling depth

135m

Drilling Angle

0~360

Engine



Elec-Motor (Y180L-4)

22KW, 1470 r/min, 190kg

Diesel (4L68)

24KW, 1500 r/min, 215kg

Rotary Table

Dual Cylinder Hydraulic Feeding Mechanic Rotary

Spindle Through Hole Diameter

80mm

Forward Spindle Speed

58 101 160 221 234 406 640 885 r/min

Reverse Spindle Speed

46 183 r/min

Max Torque

3000Nm

Spindle stroke

600mm

Max Lifting Force

60KN

Max Pressing Force

100KN

Hydraulic System



System Pressure

Nominal Pressure 8Mpa, Max Pressure 10Mpa

Oil Pump

Type: Gearing Pump (CB-E25)

Displacement

20mL/r

Nominal Speed

1500r/min

Nominal Pressure

16Mpa

Max Pressure

20Mpa

Drilling Tower



Height

9m

Angle Adjustable

45~90

Lifting Capacity

9.6KN

Dimension(LxWxH)

4×4×9m

Weight(include underframe)

1300kg

Frame

Type: Skiding

Rig Travel

460mm

Away from Hole

260mm

Dimension(LxWxH)

2510×950×1820mm

Weight(engine not included)

1300kg
