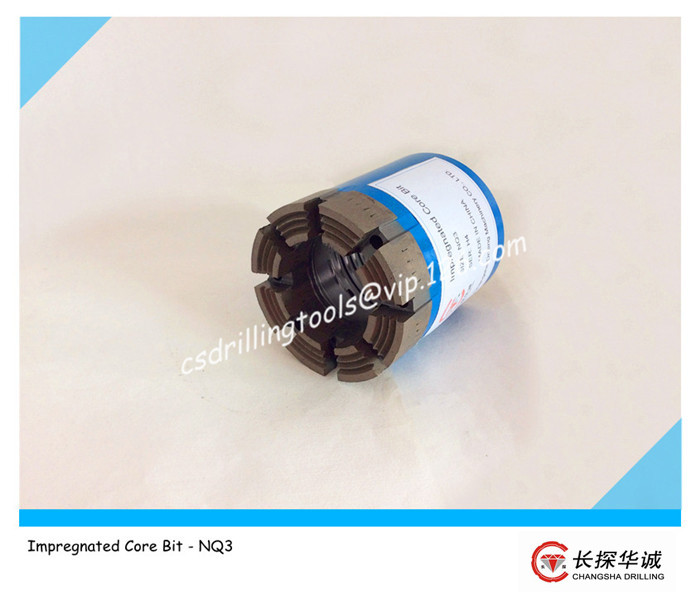

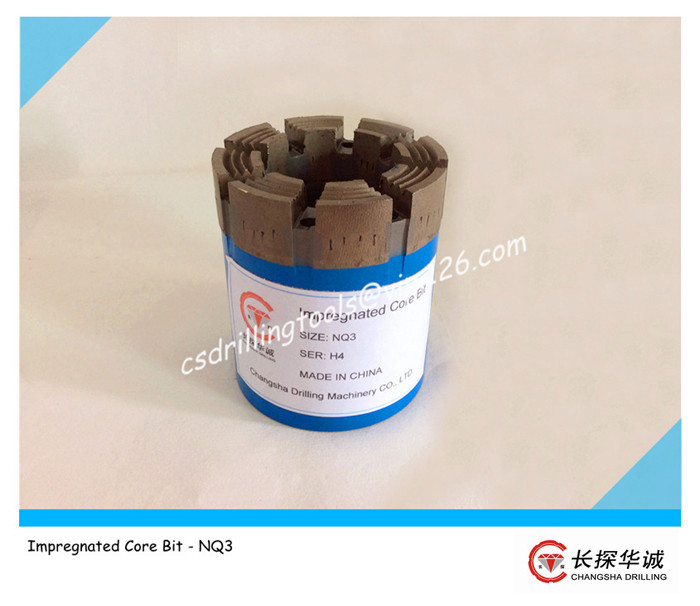

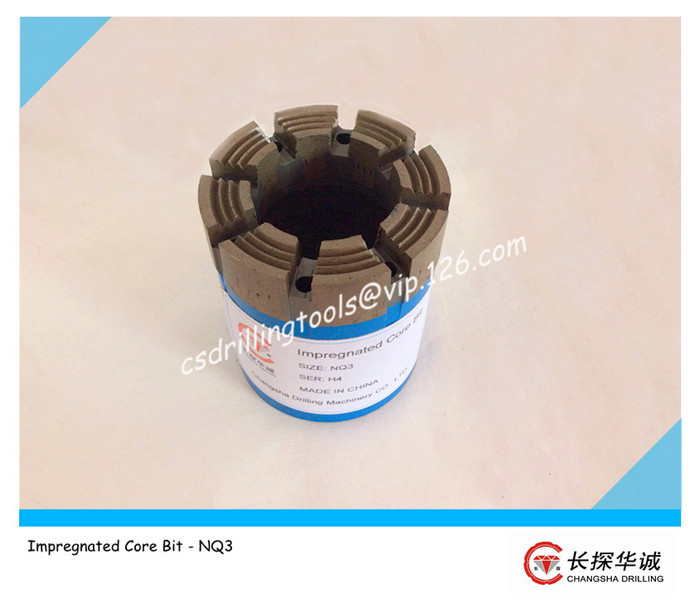

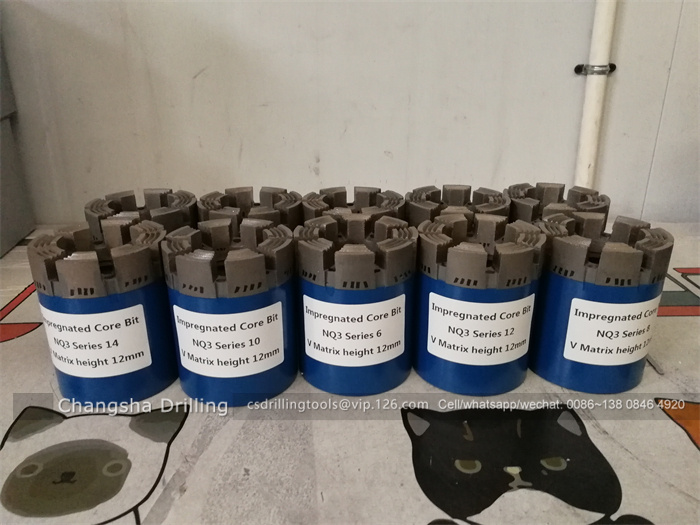

  • NQ3(NQTT) Impregnated diamond bit
  • NQ3(NQTT) Impregnated diamond bit
  • NQ3(NQTT) Impregnated diamond bit
  • NQ3(NQTT) Impregnated diamond bit
NQ3(NQTT) Impregnated diamond bit NQ3(NQTT) Impregnated diamond bit NQ3(NQTT) Impregnated diamond bit NQ3(NQTT) Impregnated diamond bit

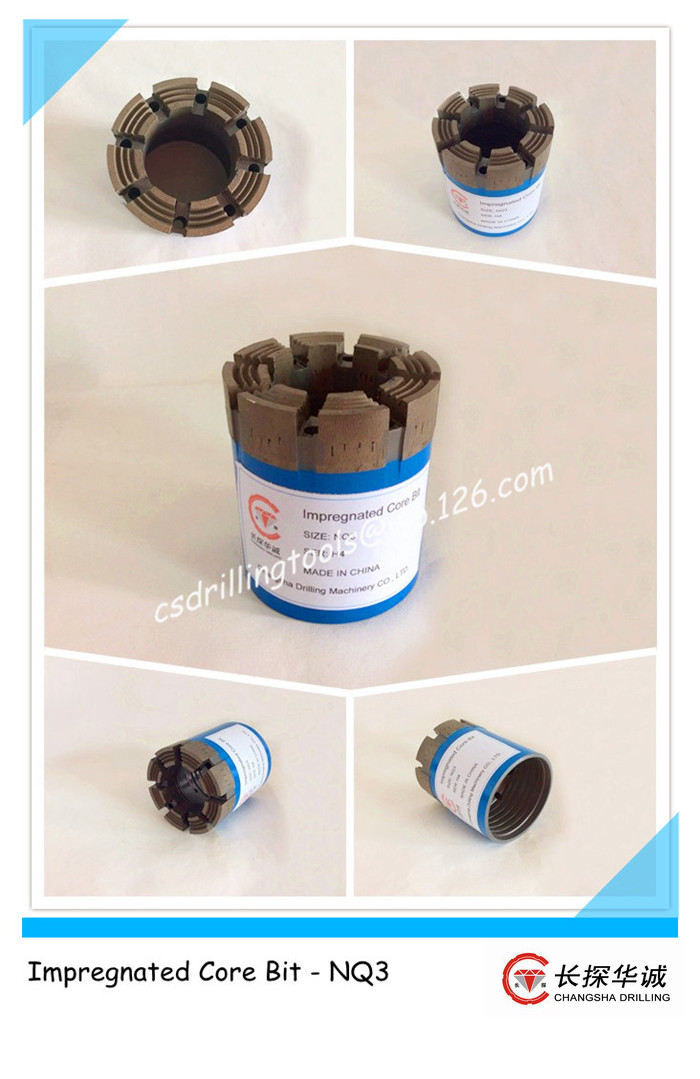

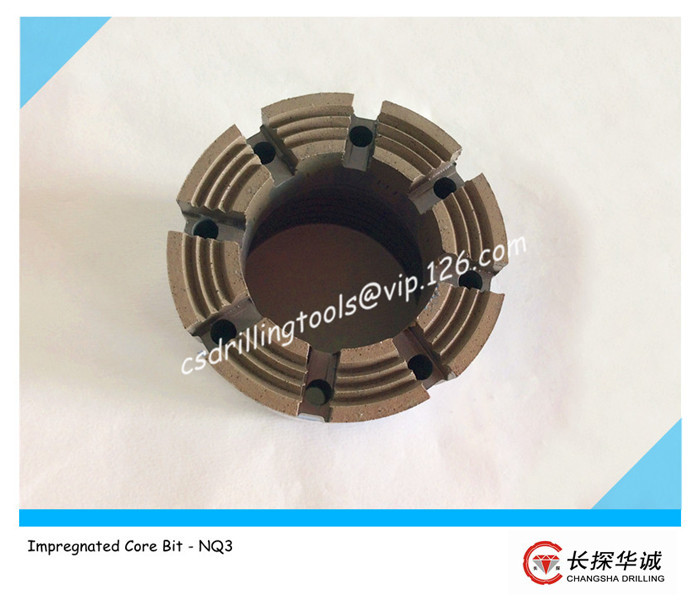

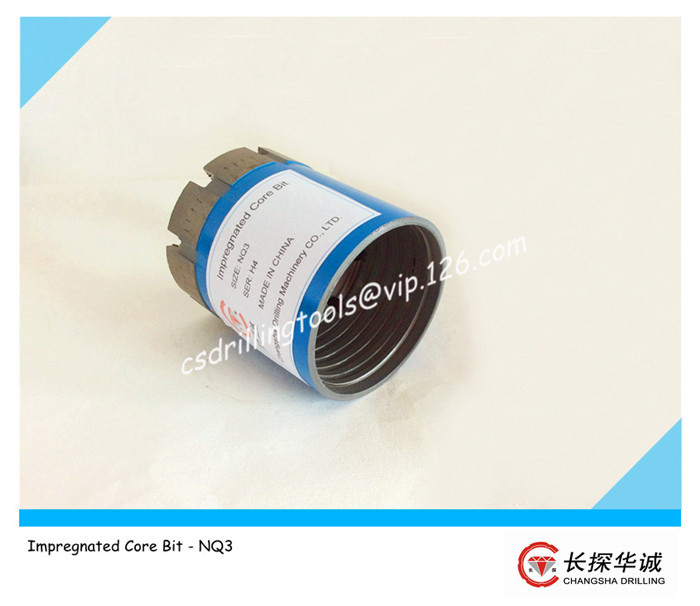

NQ3(NQTT) Impregnated diamond bit


Features& Advantages:

1. Super long life
2. High drilling speed
3. Excellent gage protection
4. Widely used (suitable for drilling all kinds of rocks)
5. Low cost
6. Can be operated under low pressure and speed

Exploration Drilling Products:
The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry, as they have the widest range of application. The carefully selected grades of high quality synthetic diamond are distributed in the depth of impregnated bit's matrix series. The matrix layer of the crown contains a uniform distribution of these crystals that are embedded in a powdered metal bond. The matrix of our impregnated bits is designed to expose new diamonds to the bits' cutting face as wear occurs. Fast penetration rate is maintained as a result of this action. Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum. The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled. When order, please read.



Brief Introductions of Impregnated Diamond Bits:
The impregnated diamond bits are cutting tools. They contain diamond segments bonded to a base material. They are widely applied in cutting non-ferrous materials. The selected grades of synthetic diamond of high quality are distributed in the depth of impregnated bit's matrix series. The matrix layer of the crown contains a uniform distribution of these crystals that are embedded in a powdered metal bond. This diamond tool is widely applied in the mineral exploration industry.


NQ3(NQTT) Impregnated diamond bit

NQ3(NQTT) Impregnated diamond bit

NQ3(NQTT) Impregnated diamond bit

NQ3(NQTT) Impregnated diamond bit

NQ3(NQTT) Impregnated diamond bit

NQ3(NQTT) Impregnated diamond bit






Other Size Available

Q Series

AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT

T2 Series

T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

T6 Series

T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116

T Series

T36, T46, T56, T66, T76, T86

Z Series

Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146

B Series

B36, B46, B56, B66, B76, B86, B101, B116, B131, B146

WF Series

HWF, PWF, SWF, UWF, ZWF

WT Series

RWT, ETW, AWT, BWT, NWT, HWT (Single/Double Tube)

WG Series

EWG, AWG, BWG, NWG, HWG (Single/Double Tube)

WM Series

EWM, AWM, BWM, NWM

Others

NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.
